Chipsens Launches MEMS Optical Switching Chip
💡A new MEMS optical switch could reshape connectivity for AI and high-performance computing clusters.
⚡ 30-Second TL;DR
What Changed
Suzhou Chipsens launched a standard large-array MEMS micromirror chip.
Why It Matters
Optical circuit switching can help AI and high-performance computing systems move large workloads with lower electrical bottlenecks. A localized micromirror component could also improve supply-chain resilience for data-center networking equipment.
What To Do Next
Benchmark the chip’s switching latency, optical loss, and port scalability against current optical interconnect options before considering it for an AI cluster.
Key Points
- •Suzhou Chipsens launched a standard large-array MEMS micromirror chip.
- •The chip targets optical circuit switching applications.
- •The launch advances China’s localization of optical switching technology.
🧠 Deep Insight
Background and context from public sources — not the original article. 1 sources cited.
🔑 Enhanced Key Takeaways

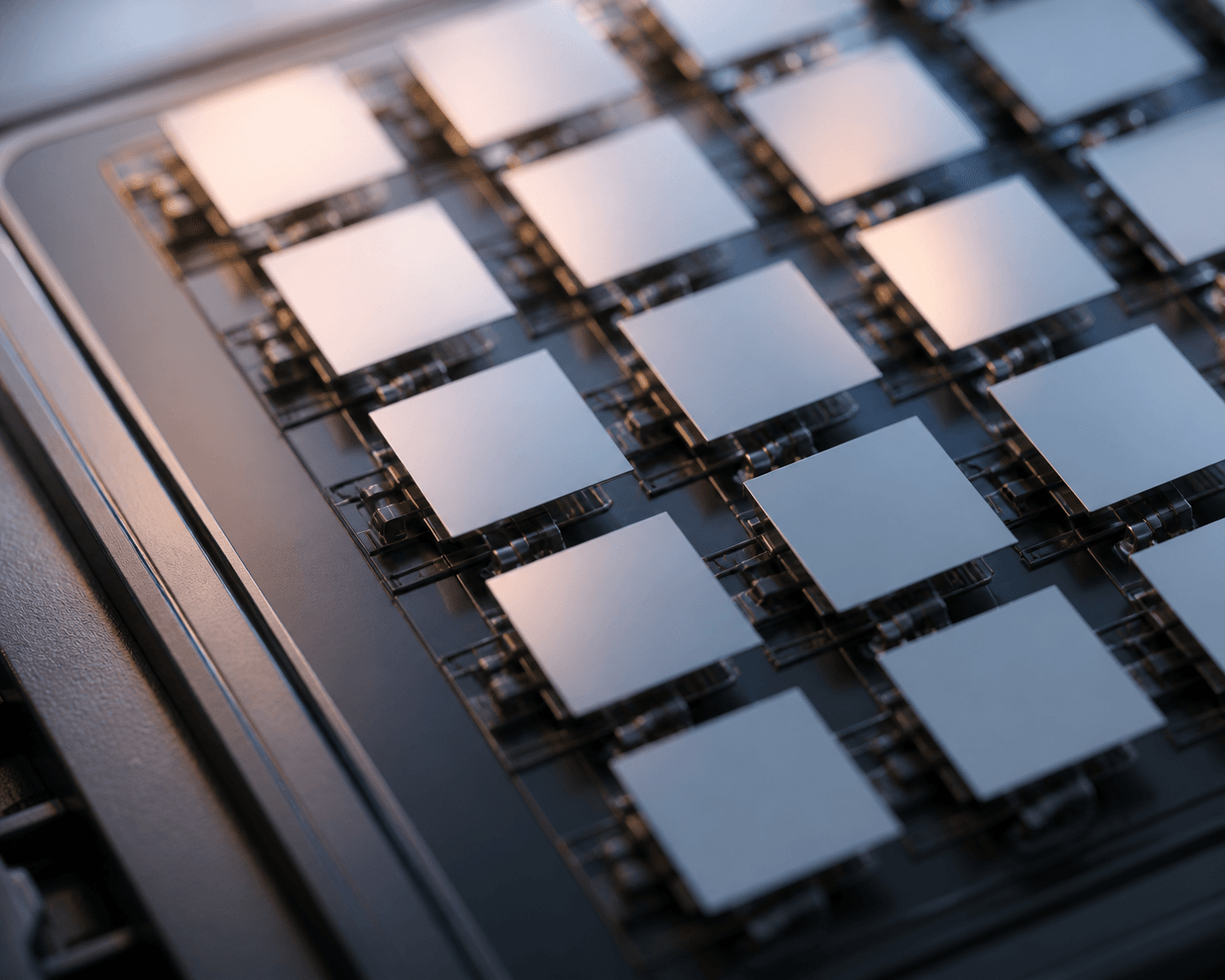

- •The chip features a high-density architecture containing 416 independently rotating mirror units on a single silicon substrate.
- •The device achieves a mass-production yield rate exceeding 90%, addressing a common bottleneck in MEMS manufacturing for optical infrastructure.
- •The micromirror array is rated for a mechanical cycle life of over one billion operations, ensuring long-term reliability in data center environments.
- •Chipsens utilizes a vertically integrated business model, maintaining internal control over design, wafer fabrication, packaging, and final module assembly.
- •The technology is specifically engineered to support 320x320 channel Optical Circuit Switching (OCS) configurations, a standard requirement for modern AI compute clusters.
📊 Competitor Analysis▸ Show
| Feature | Chipsens MEMS Array | Industry Standard (General MEMS) |
|---|---|---|
| Mirror Count | 416 units | Varies (typically 100-500) |
| Deflection Angle | ±6.5° (X) / ±5.5° (Y) | ±5° to ±8° |
| Reflectivity | ≥96% (Infrared) | 95% - 98% |
| Response Time | <10 ms | 5 ms - 20 ms |
🛠️ Technical Deep Dive
- Chip Dimensions: 33.6 mm x 20.85 mm x 0.66 mm
- Mirror Configuration: 416 independently addressable units
- Deflection Range: ±6.5 degrees on X-axis and ±5.5 degrees on Y-axis
- Optical Performance: Minimum 96% infrared reflectivity
- Switching Speed: Response time under 10 milliseconds
- Durability: Rated for >1 billion cycles
- Manufacturing: Silicon-based MEMS fabrication with >90% yield
🔮 Future ImplicationsAI analysis grounded in cited sources
